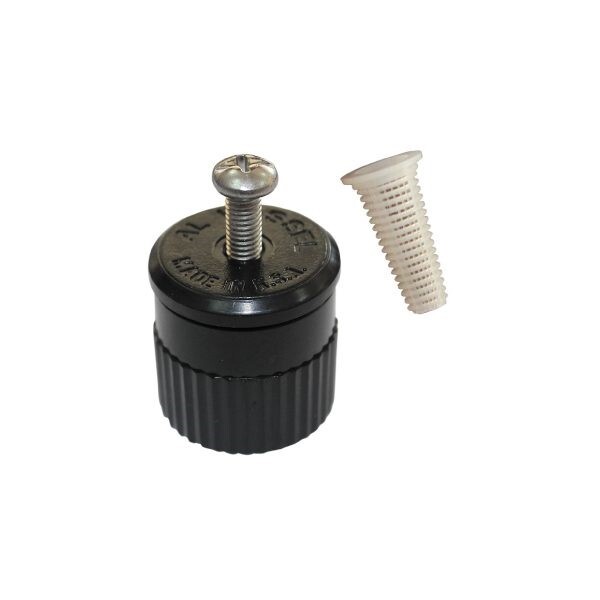

Drippers are the key components in drip irrigation systems. They deliver precise amounts of water directly to the root zone of plants. They are available in pressure compensating (PC) and non-pressure compensating (NPC) types.

Technical Specifications:

• Flow Rate: 8 LPH, 16 LPH
• Operating Pressure: 1 bar – 4 bar
• Material: High-grade UV resistant plastic
• Filtration Requirement: 120 mesh

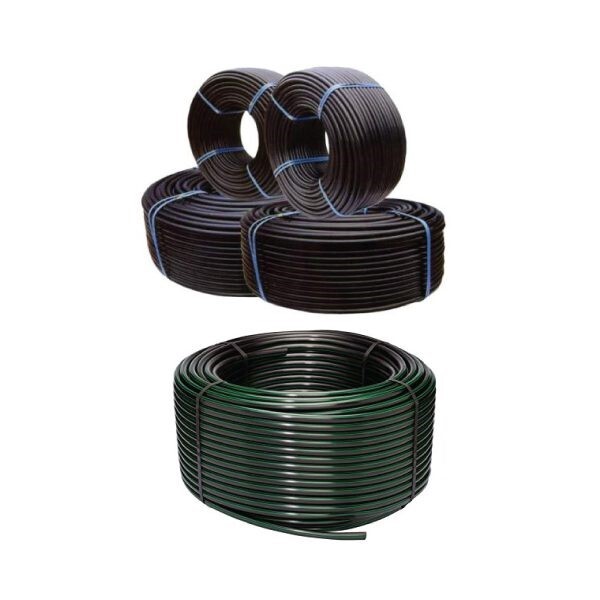

Laterals are the small-diameter polyethylene pipes that carry water from the sub-main line to the drippers.

Technical Specifications:

• Diameter: 16mm,
• Wall Thickness: 0.9mm – 1.2mm
• Material: UV stabilized LLDPE

Pressure Rating: 2.5 bar

Filters are essential to remove dirt and debris to prevent clogging of drippers. Common types include screen filters, disc filters, and hydrocyclone filters.

Technical Specifications:

• Micron Rating: 120 mesh / 130 micron
• Flow Capacity: 5 – 50 m³/hr
• Material: Engineering plastic / coated steel

Control valves regulate the water flow in the drip irrigation system. They can be manual or automatic.

Technical Specifications:

• Sizes: 1/2 inch to 4 inch
• Pressure Rating: PN10 / PN16
• Type: Ball Valve, Butterfly Valve, Gate Valve

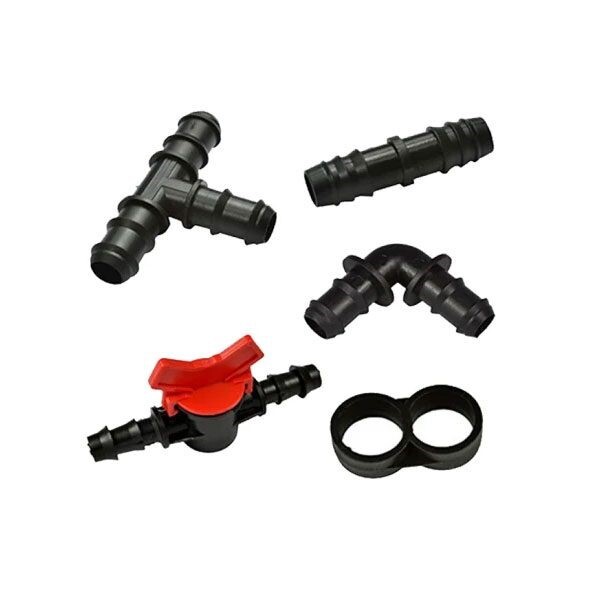

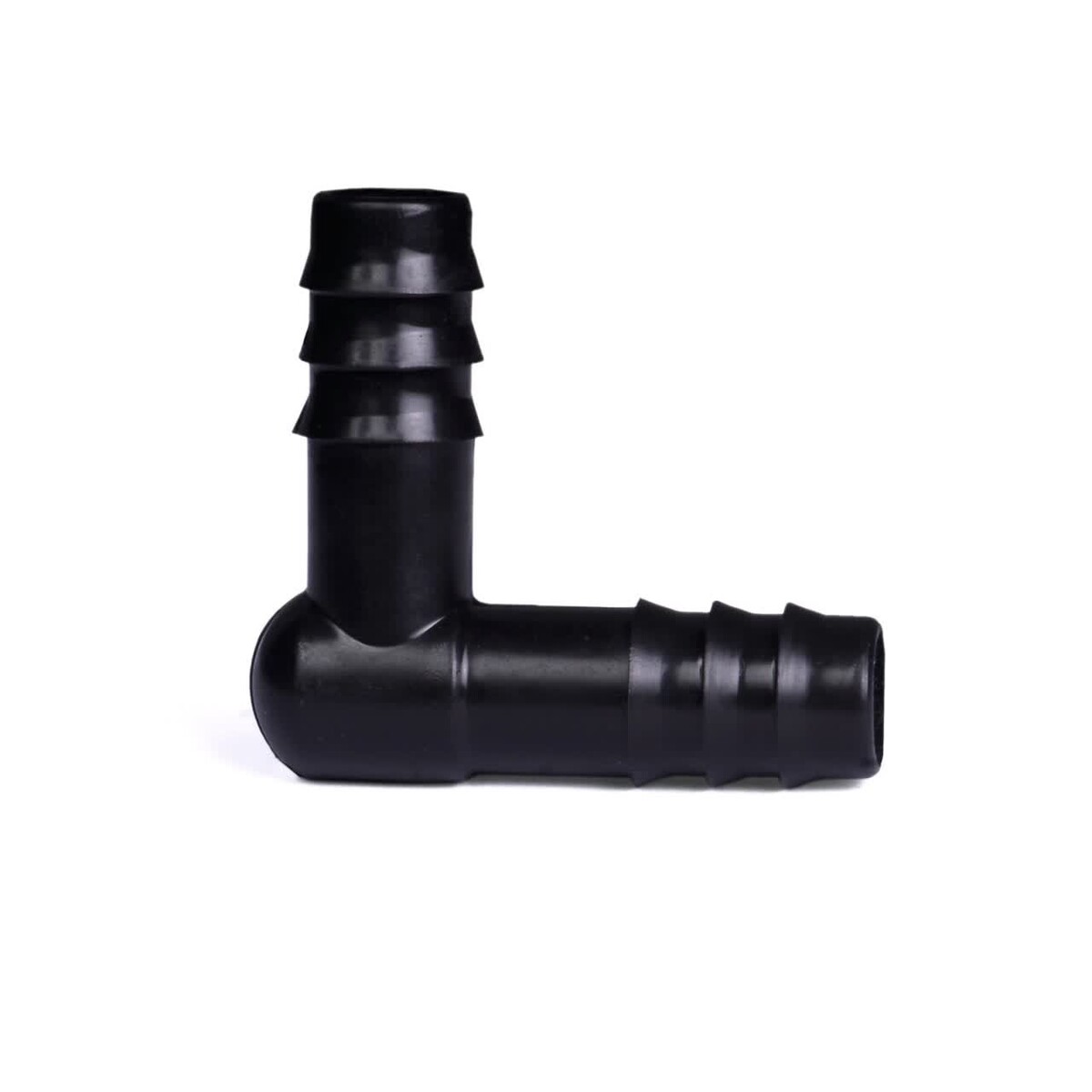

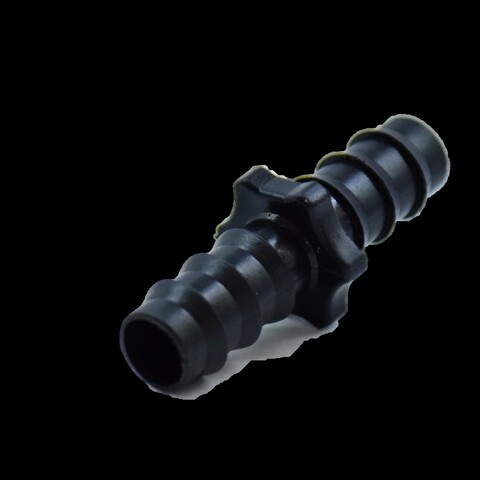

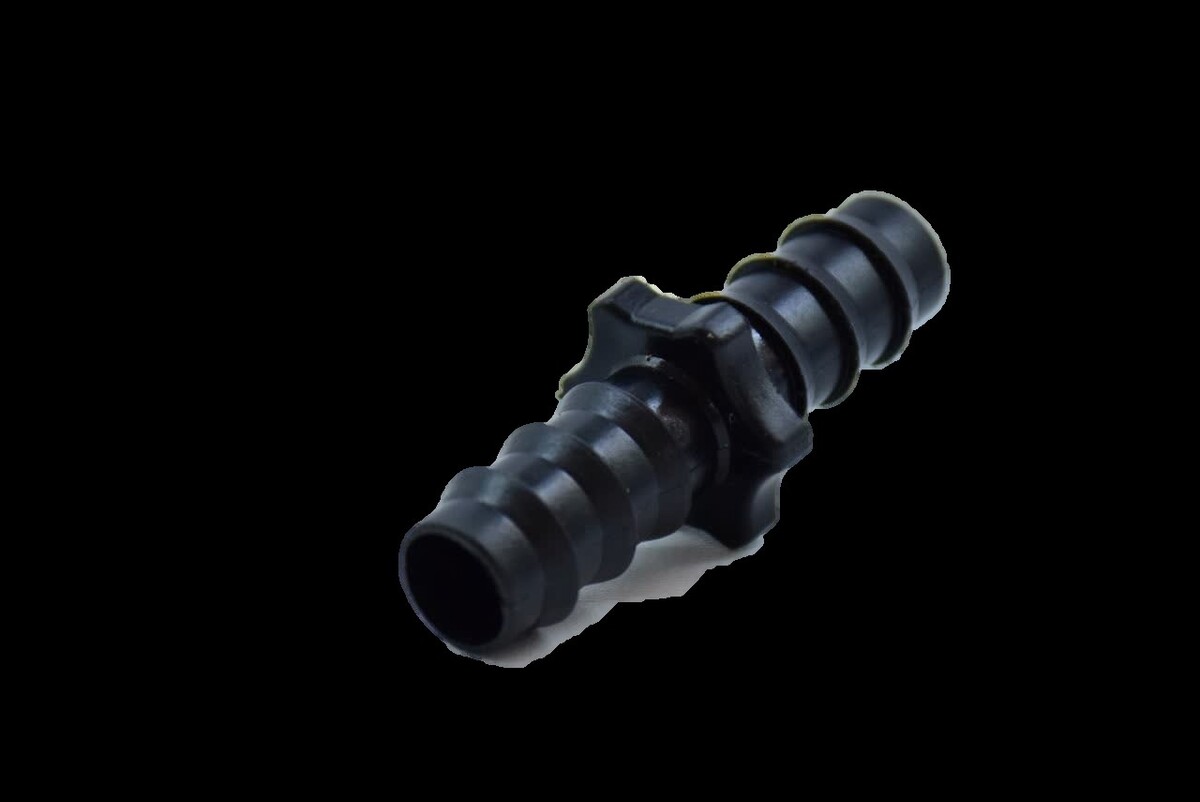

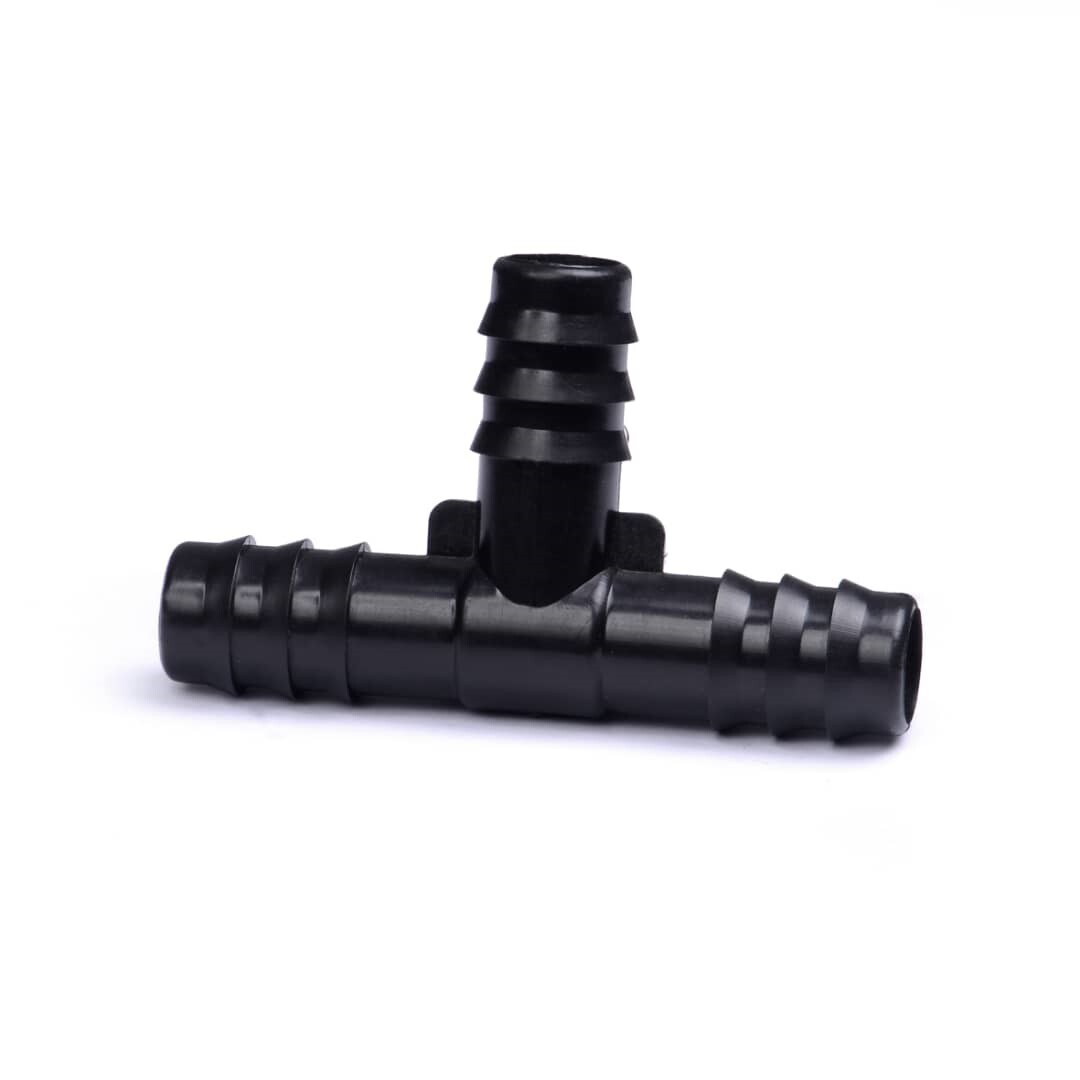

Fittings connect the laterals, mainline, and sub-main lines. Common types include tees, elbows, couplers, and end caps.

Technical Specifications:

• Sizes: , 16mm, 20mm,
• Material: UV resistant polypropylene
• Pressure Rating: 2.5 – 4 bar

Mainline and sub-main pipes are usually made of HDPE or PVC to transport water from the source to the laterals.

Technical Specifications:

• Material: HDPE / PVC
• Diameter: 32mm – 110mm
• Pressure Rating: PN6 – PN16

• Adjustable Flow Bubbler
• (Screw Type)Inlet Size: 1/2″ BSP
• Female Thread
• Operating Pressure: 0.7 – 4 Bar
• Flow Rate: 4LPM – 9 LPM
• Radius: 30cm – 90cm

A Fertigation Tank is designed to mix and deliver fertilizers directly through the irrigation system. It ensures precise and uniform distribution of nutrients to every plant, saving water, fertilizer, and labor. This makes fertigation one of the most efficient methods of crop management.

Technical Specifications

• Capacity: 50 L, 100 L, 200 L (custom sizes available)
• Material: HDPE / FRP (UV-resistant, corrosion-free)
• Operating Pressure: 1.0 – 4.0 bar
• Inlet/Outlet Size: ½” – 1” BSP/NPT threads
• Accessories: Pressure gauge, venturi injector, valves, filter connection ports

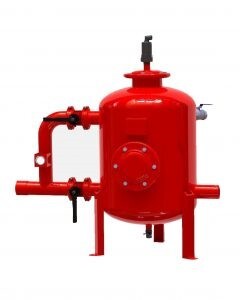

A Sand Media Filter is the most reliable primary filtration system for drip and sprinkler irrigation. It effectively removes organic matter, algae, and suspended particles from irrigation water, ensuring clog-free operation of emitters and sprinklers. Sand filters are highly recommended for water sourced from canals, rivers, reservoirs, and ponds.

Technical Specifications

• Available Sizes: 16” / 20” / 24” / 30” / 36” diameter
• Flow Capacity: 10 m³/hr – 80 m³/hr (based on model)
• Filtration Media: Silica sand (graded)
• Tank Material: Mild Steel with Epoxy Coating / FRP / HDPE
• Operating Pressure: 2.5 – 6 bar
• Connections: Inlet/Outlet – 2” / 3” / 4” flanged or threaded
• Accessories: Backwash valves, pressure gauge, manifold assembly

A Flush Valve is a simple but critical component in drip irrigation systems. It is installed at the end of laterals, sub-mainlines, or mainlines to remove dirt, sand, and suspended particles. Regular flushing prevents clogging of drippers and ensures smooth water flow throughout the system.

Technical Specifications

• Material: High-quality UV-resistant PVC
• Available Sizes: ½” | ¾” | 1” | 1.5” | 2”
• Operating Pressure: 1 – 4 bar
• Design Options: End-cap type / Screw type / Ball type
• Installation: Compatible with PVC, HDPE, and LDPE pipelines
• Operation: Manual or automatic flushing options available

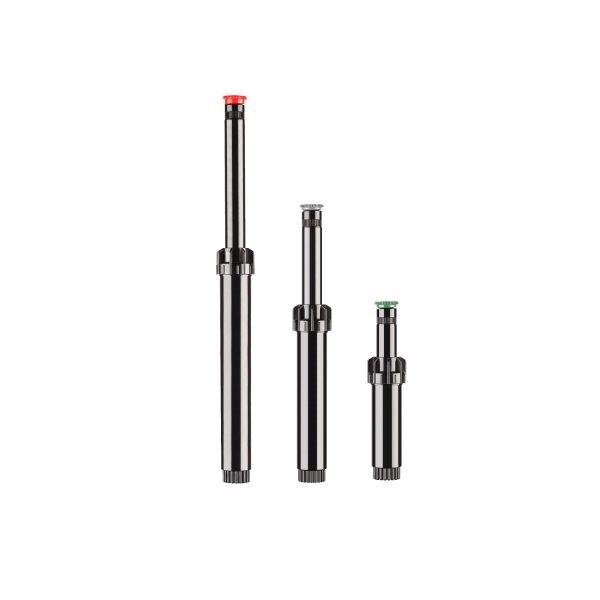

Pop-up sprinkler heads distribute water evenly across lawns and gardens. Suitable for small to medium landscapes.

Specifications:

• Radius: 8–15 ft
• Flow Rate: 0.5–4.5 GPM
• Pressure: 20–50 PSI
• Pop-up Height: 4 inches
• Material: UV-resistant plastic

Description: Nozzles adjust spray pattern, radius, and precipitation rate.
Specifications:

• Types: Fixed, Adjustable, Strip, High-Efficiency
• Flow Rate: 0.2–5 GPM
• Pressure Range: 15–50 PSI
• Material: Plastic/Brass
• Compatibility: Fits standard bodies
• Models: 10A, 12A, 15A, 17A

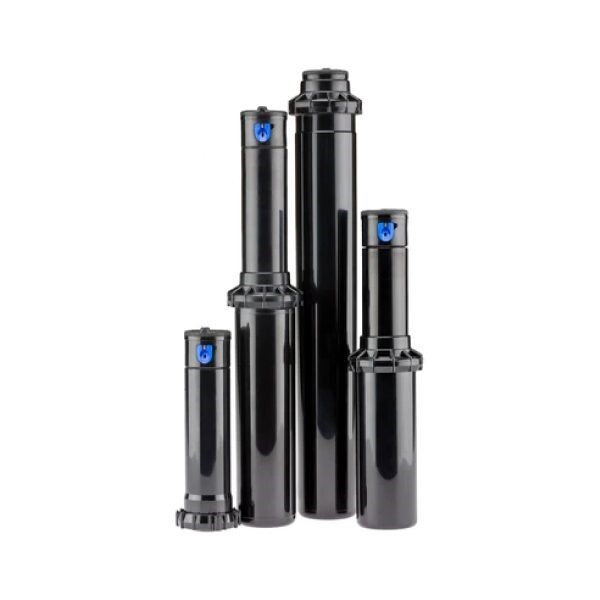

Rotor sprinklers are gear-driven and ideal for medium to large areas requiring adjustable arcs.

Specifications:

• Radius: 15–50 ft
• Flow Rate: 0.75–14 GPM
• Pressure: 25–70 PSI
• Arc Adjustment: 40°–360°
• Material: Reinforced polymer

Impact sprinklers provide strong, adjustable water streams for larger landscapes and durable outdoor use.

Specifications:

• Radius: 20–45 ft
• Flow Rate: 2–10 GPM
• Pressure: 30–60 PSI
• Arc: Full or Part Circle
• Material: Brass/Plastic

Automatic solenoid control valves regulate water flow to sprinkler zones.

Specifications:

• Size: 1 - 2 inch
• Flow Capacity: Up to 30 GPM
• Pressure: 15–150 PSI
• Material: Glass-filled nylon
• Manual bleed screw for testing

Programmable irrigation controller with Wi-Fi connectivity and sensor compatibility.

Specifications:

• Zones: 4–12 stations
• Power: 220V AC with backup battery
• Connectivity: Wi-Fi, Rain sensor port
• Programs: Multiple start times per day
• Weather-based scheduling

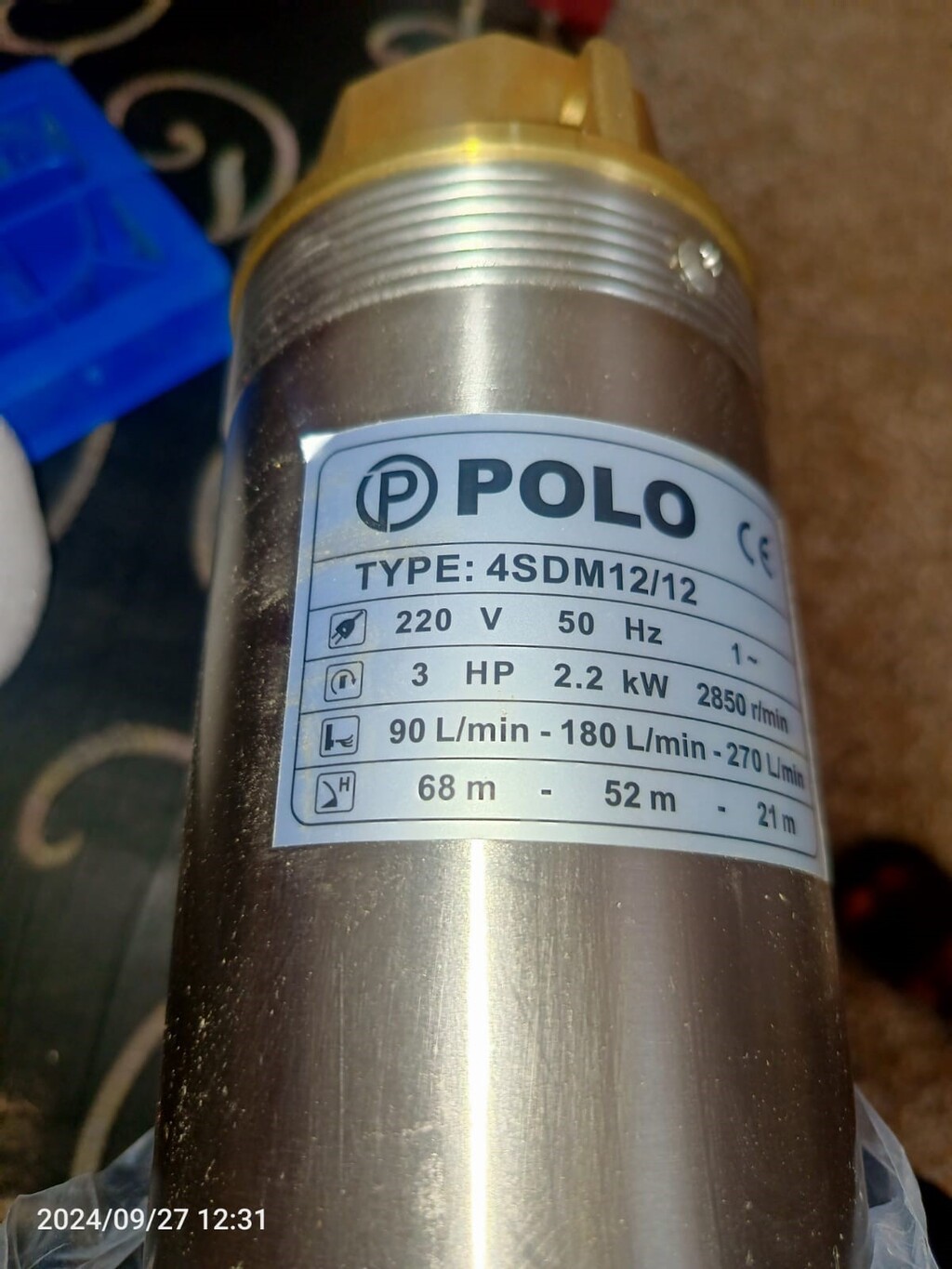

A submersible pump is designed to operate while fully submerged in water, making it highly efficient for pumping from underground tanks, boreholes, or reservoirs. Ideal for landscape and irrigation applications where consistent water delivery is required.

Specifications:

• Power Range: 1 HP – 50 HP
• Discharge: 20 – 800 LPM (liters per minute)
• Head Range: 30 – 250 meters
• Voltage: 220V / 380V AC (Single or Three Phase)
• Pump Type: Stainless steel / Cast iron
• Application: Irrigation, landscaping, water supply from wells, ponds, and reservoirs
• Features: Corrosion-resistant body, energy-efficient motor, high durability

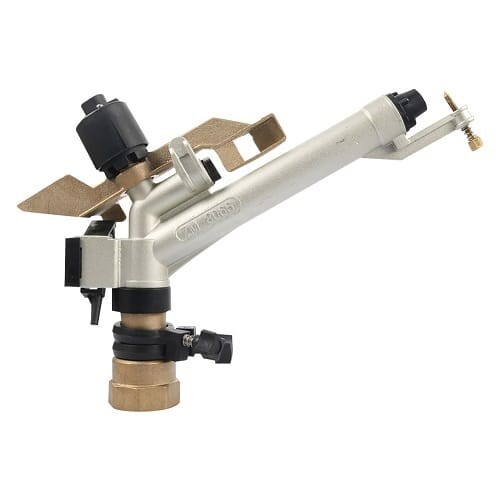

Raingun sprinklers are high-capacity irrigation devices designed for large landscape areas, sports grounds, orchards, nurseries, and agricultural fields. They deliver water in a strong, uniform spray, making them suitable for both light irrigation and heavy watering.

Specifications:

• Coverage Radius: 35 – 90 meters (depending on model & pressure)
• Flow Rate: 5 – 35 LPS (liters per second)
• Pressure Range: 2 – 10 bar
• Material: Heavy-duty aluminum / brass / engineering plastic
• Mounting: Tripod stand or riser pipe
• Spray Pattern: Full circle / part circle adjustable (30° – 360°)
• Applications: Landscapes, sports fields, nurseries, orchards, golf courses, agricultural irrigation.

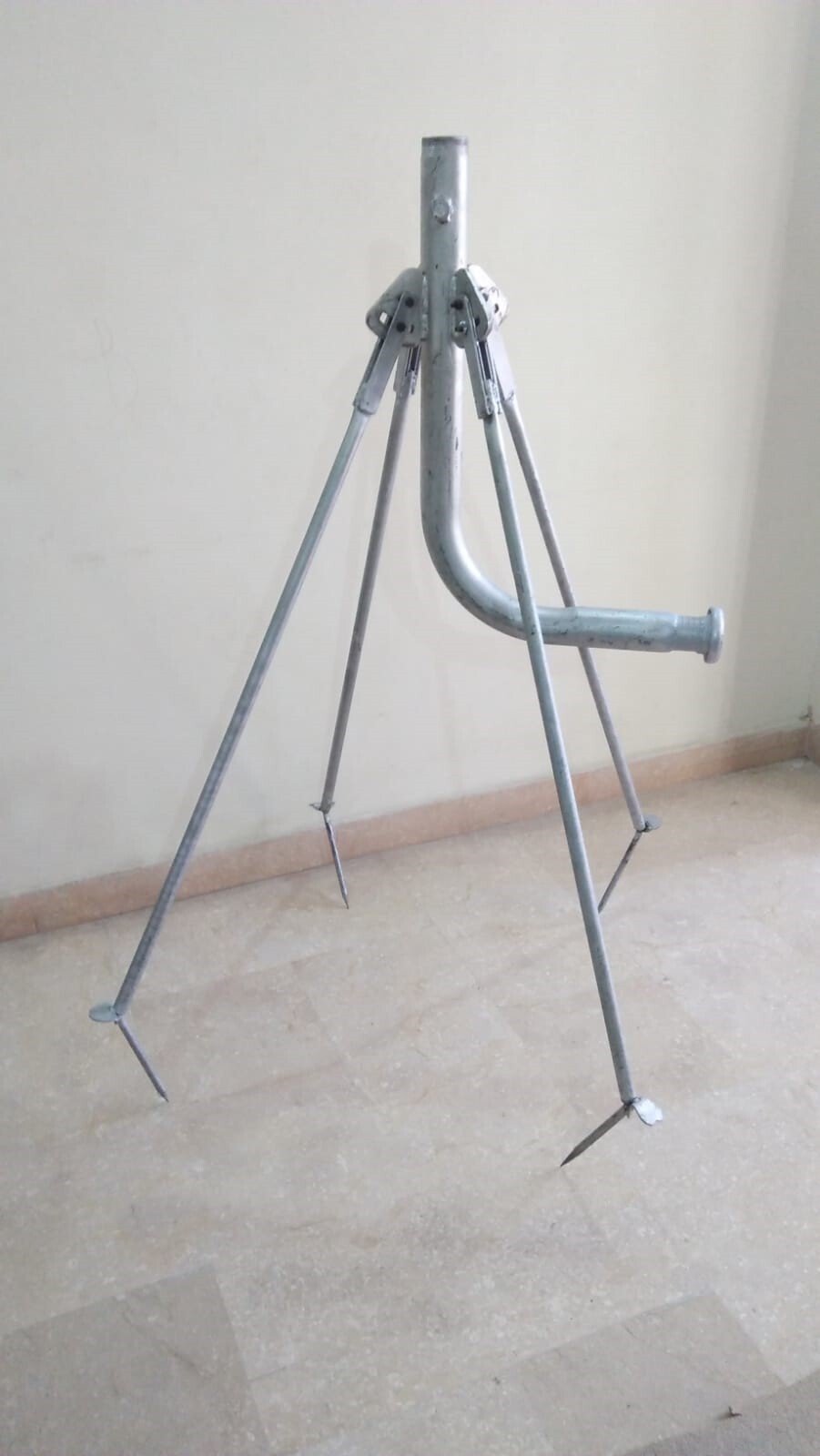

A raingun stand provides stable mounting for raingun sprinklers. It ensures proper positioning, height adjustment, and portability for efficient water distribution over large landscape or agricultural areas.

Specifications:

• Types: Tripod stand / Fixed riser stand
• Height Adjustment: 3 – 7 ft (adjustable models available)
• Pipe Connection: 1.5” – 2.5” inlet size
• Material: Galvanized steel / powder-coated steel / heavy-duty aluminum
• Stability: Wide tripod base with anti-slip ends
• Mobility: Portable, easy to move across fields and lawns
• Applications: Used with medium and large rainguns in landscaping, sports grounds, orchards, nurseries, and large fields

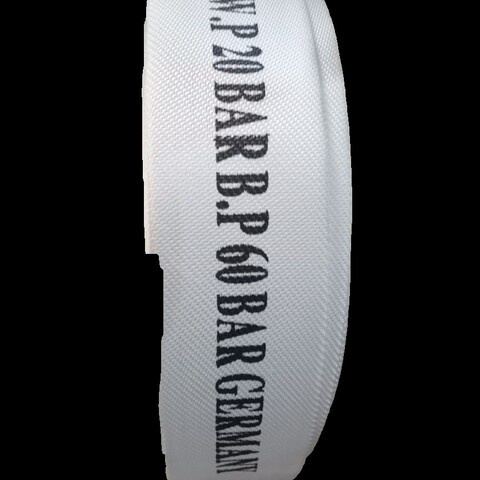

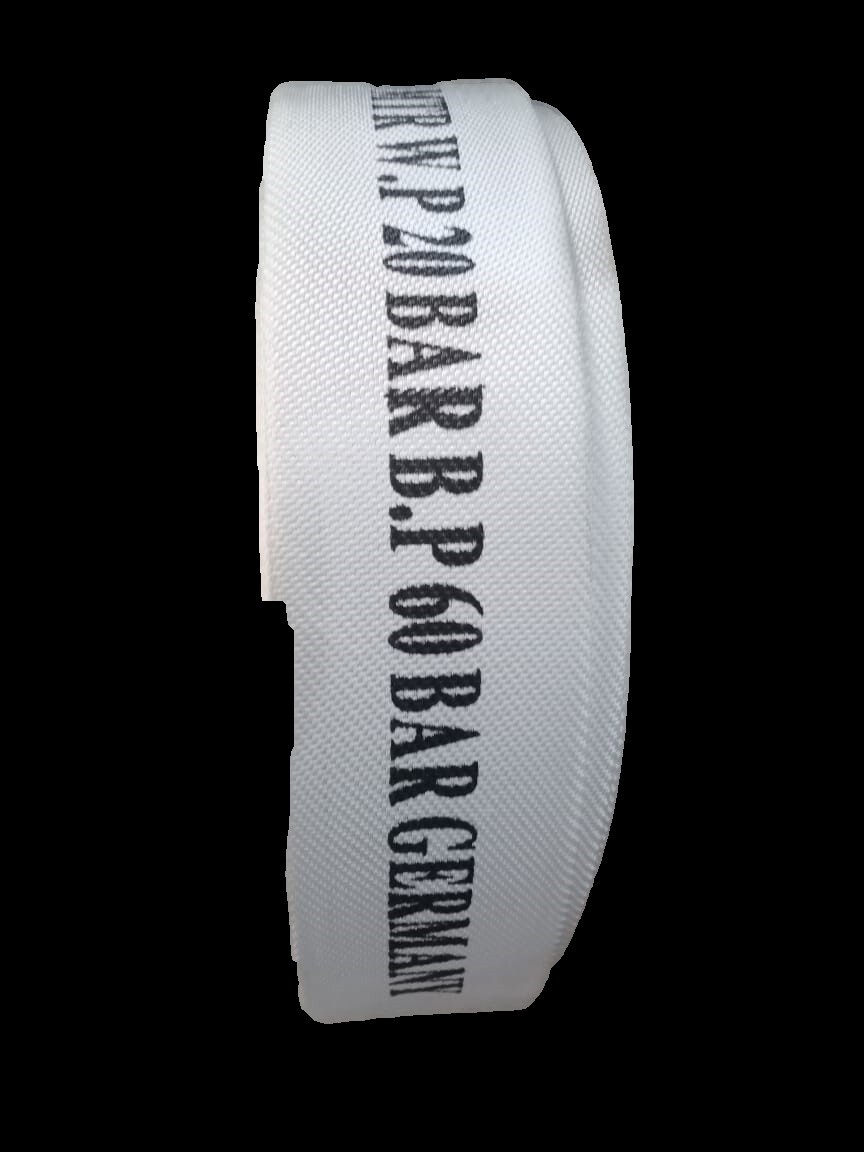

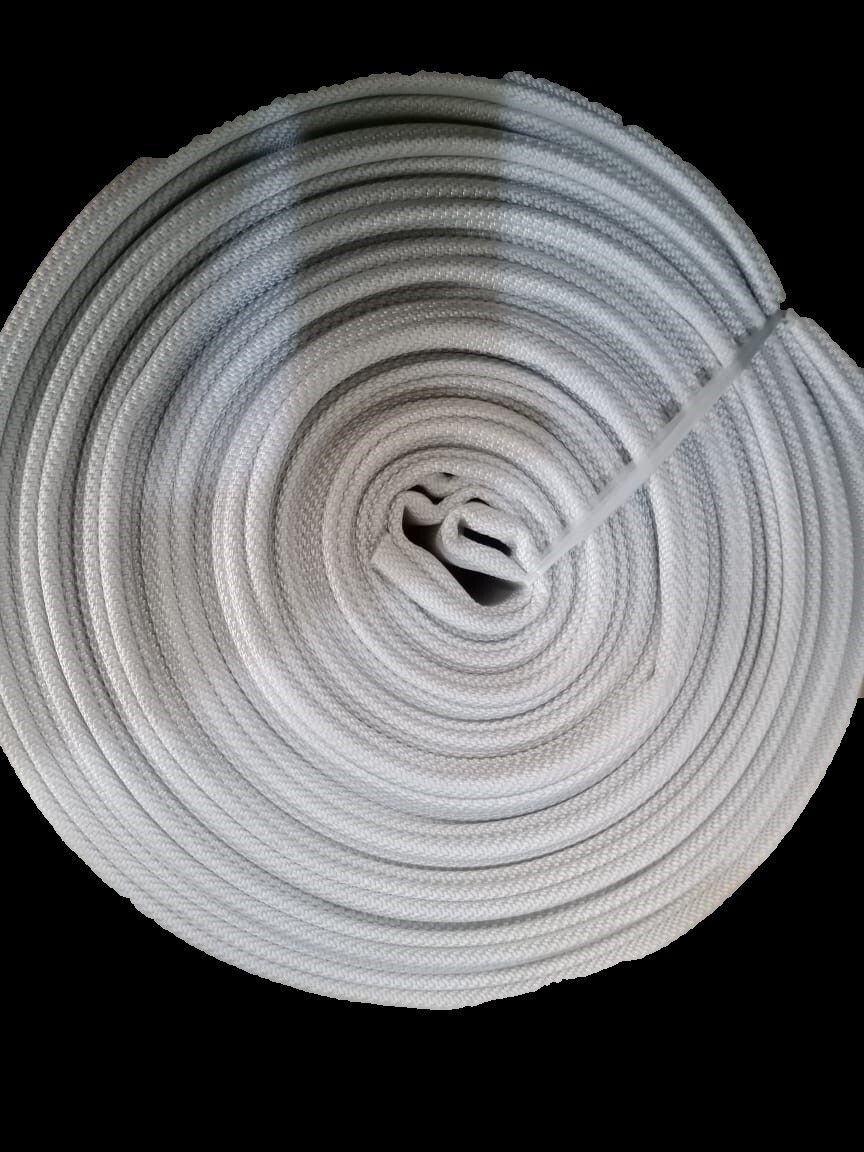

Flexible pipes are lightweight, durable, and easy-to-handle pipes designed for portable irrigation systems. The 2.5-inch flexible pipe is commonly used with rainguns, sprinklers, and portable irrigation setups due to its strength and mobility.

Specifications:

• Size: 2.5 inch (63 mm) diameter
• Material: High-quality  Rubber coated
• Pressure Rating: 6 – 10 bar (90 – 150 PSI)
• Lengths Available: 50m, 100m rolls
• Flexibility: Easy to roll and unroll, kink-resistant
• UV Resistance: Yes (suitable for outdoor use)
• Applications: Raingun irrigation, sprinkler irrigation, temporary water supply lines, landscaping, nurseries

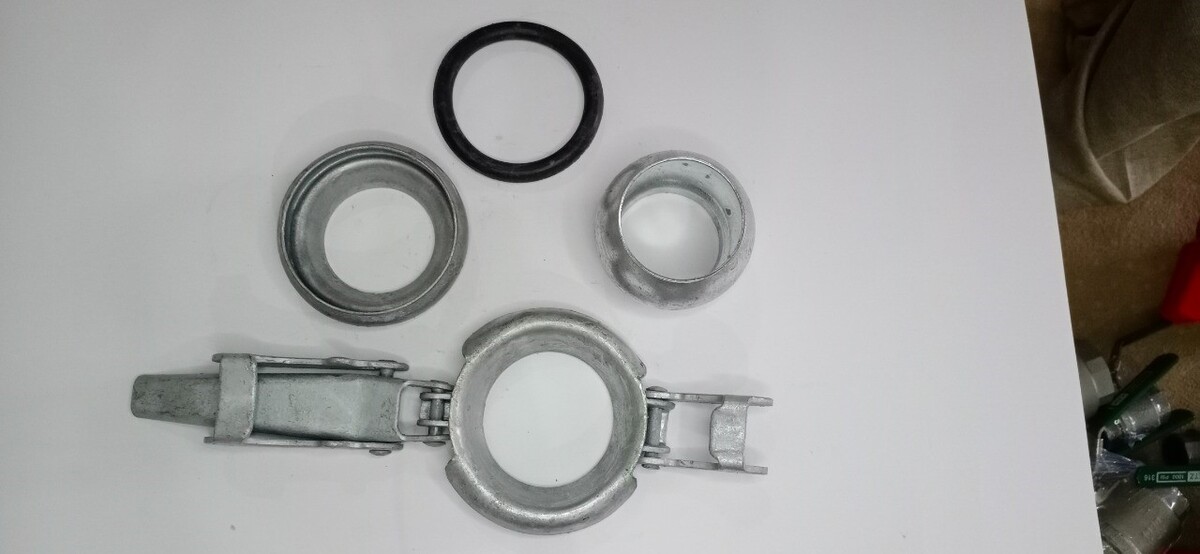

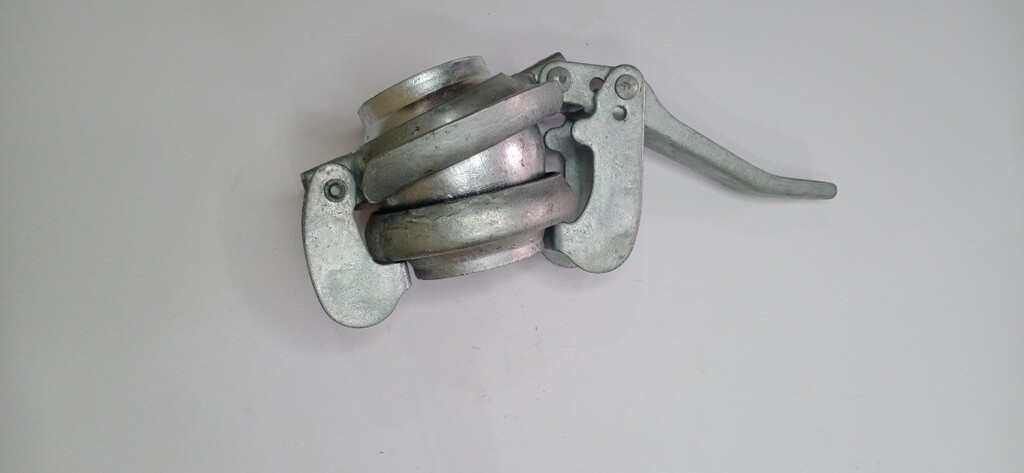

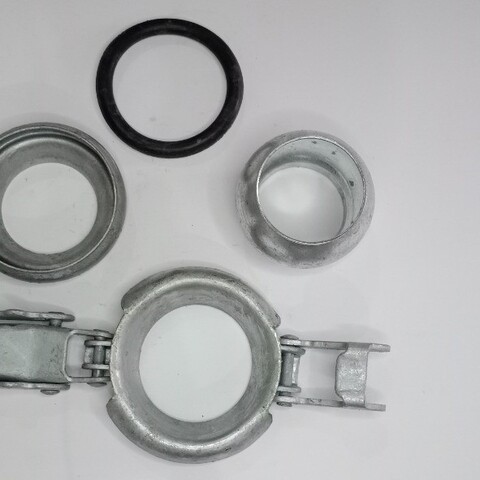

Raingun couplers are specially designed fittings used to connect flexible pipes or quick coupling pipes with raingun sprinklers and stands. They ensure leak-free, quick, and secure connections, making the system portable and efficient.

Specifications:

• Size: 2.5 inch (compatible with raingun pipes)
• Material: Brass / Aluminum / Reinforced Engineering Plastic
• Pressure Rating: Up to 10 bar (150 PSI)
• Connection Type: Quick coupling with lock system
• Corrosion Resistance: Yes (suitable for outdoor irrigation)
• Durability: Heavy-duty, long-lasting for repeated use
• Applications: Used with rainguns, flexible pipes, quick coupling pipes, and portable irrigation setups
